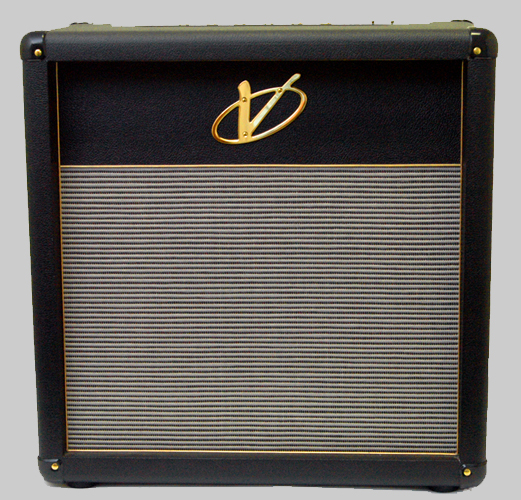

V-Plex Single Lead Combo

"Never has an amp been shrouded in as much mystery as the infamous "Plexi" panel amps of the mid to late 60's. Decades worth of guitar Gods and players alike have considered the plexi to be the holy grail. Finding a plexi that sounds like the records is always difficult as well as costly. If you want a great sounding plexi without the disappointment - The Voodoo V-Plex is the answer!"

DESCRIPTION

  • Hand crafted, built & assembled in the USA
  • 100% hand wired (no printed circuit boards)
  • Mercury Magnetics Custom Transformers
  • 1-Channel Design
  • Preamp Tubes: 3=12AX7's
  • Power Tubes: EL34's - 50 & 100 watt models
  • Power Tubes: 6V6's - 25 watt models
  • Voodoo Designed™ 1x12 enclosure, Baltic birch 13ply
  • Miniature rugged metal recessed handles

FRONT PANEL - MASTER VOLUME

  • Gain (preamp)
  • Master Volume
  • EQ - Bass, Mids, Treble & Presence
  • 4 - 1/4" Heavy Duty Input Jacks
  • Pilot / Indicator Light
  • Heavy Duty Carling Power Switch
  • Heavy Duty Carling Standby Switch

FRONT PANEL - NON-MASTER VOLUME

  • Treble Channel Volume
  • Bass Channel Volume
  • EQ - Bass, Mids, Treble & Presence
  • 4 - 1/4" Heavy Duty Input Jacks
  • Pilot / Indicator Light
  • Heavy Duty Carling Power Switch
  • Heavy Duty Carling Standby Switch

REAR PANEL

  • Speaker Outputs: 2 - Heavy Duty 1/4" Jacks
  • 4, 8 & 16 Ohm Impedance Selector
  • Mains & HT Fuse Holders
  • Detachable 3-Prong Power Cord (IEC connector)
  • Voltage Selector - 110V, 120V, 220V & 230V

ADDITIONAL SPECS / FEATURES

  • All components and parts are chosen for tone, feel and long term reliability
  • Customer Mercury Magnetics Transformers
  • V50/50 8FT IEC Power Cable
  • Teflon wire - Aerospace grade
  • Aluminum Chassis with welded corners
  • Rugged Handle
  • Warranty

AMP DIMENSIONS FOR ROAD CASES / PRICE

Model L W H H w/feet Price (Non Master) Price (Master)
V-Plex 25 12" 22" 22" 22.25" 2,560,- EUR 2,690,- EUR
V-Plex 50 12" 22" 22" 22.25" 2,690,- EUR 2,850,- EUR
Voodoo Amps
Tolex Options
Grill Cloth Options

Speaker Options:
